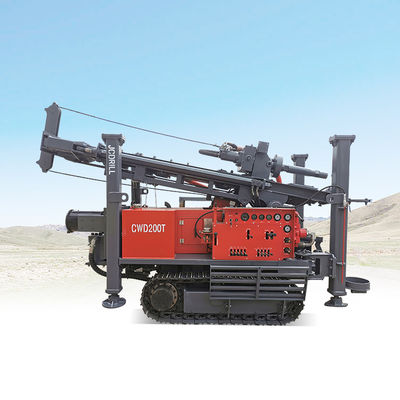

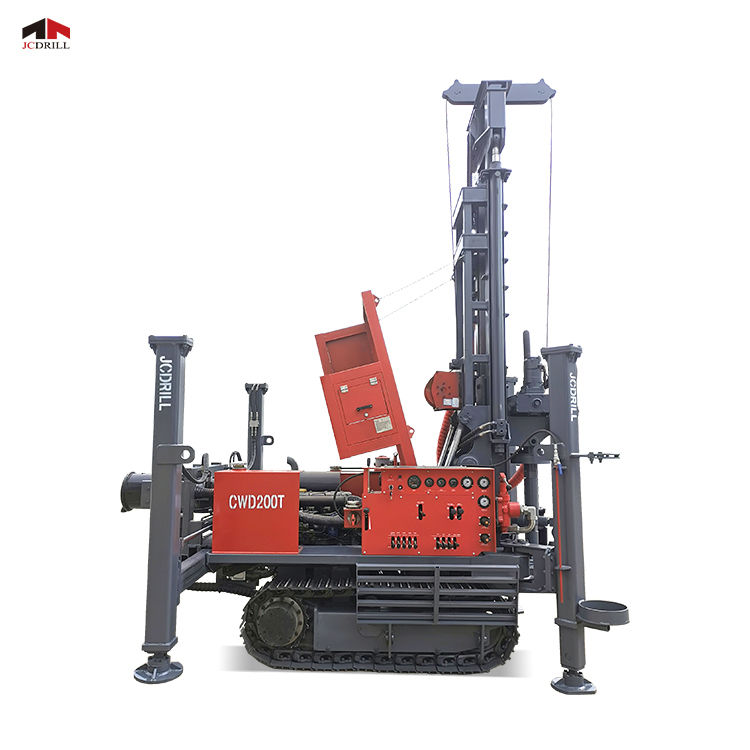

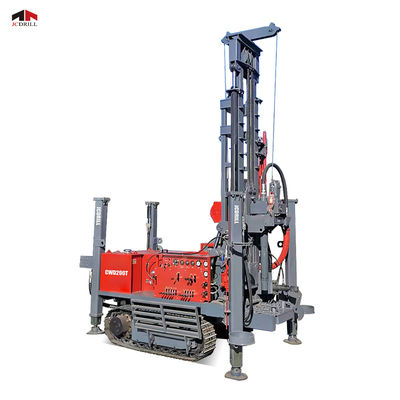

CWD200T Crawler Mounted Water Well Drill Rig 2000m Depth 5500Nm Torque

CWD200T Crawler Mounted Water Well Drill Rig 2000m Depth 5500Nm Torque

Nome da marca:	JCDRILL
Número do modelo:	CWD200T Rigação de perfuração de poço de água rotativa
MOQ:	1 conjunto
preço:	Negociável
Condições de pagamento:	L/C, T/T, Western Union
Capacidade de abastecimento:	2000 grupos/ano

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

CE， ISO

Diâmetro do orifício:

90-350mm

Profundidade do orifício:

2000m

Torque:

5500nm

Velocidade de rotação:

60-115rpm

Diâmetro do tubo de perfuração:

76/89/102mm

Comprimento do tubo de perfuração:

3000mm

Geologia perfurada:

Air DTH e perfuração rotativa de lama

Tipo de perfuração:

DTH & MUD Rotary Dril Rig

Tipo de compressor:

Parafuso rotativo/compressor de ar móvel

Tipo de motor:

Motor a diesel Yuchai

Bomba de lama:

Bomba de lama BW250

Nome:

CWD200T Water Well Drill Rig

Detalhes da embalagem:

20GP

Habilidade da fonte:

2000 grupos/ano

Destacar:

CWD200T crawler mounted water well drill

2000m depth borehole drilling rig

5500Nm torque water well drill

Descrição do produto

CWD200T Crawler Mounted Diesel Power Engine Water Well Drilling Rig

Key Specifications

Attribute	Value
Hole Diameter	90-350mm
Hole Depth	2000m
Torque	5500Nm
Rotation Speed	60-115rpm
Drill Pipe Diameter	76/89/102mm
Drill Pipe Length	3000mm
Geology Drilled	Air DTH and Mud rotary drilling
Drilling Type	DTH & Mud Rotary drill rig
Compressor Type	Rotary Screw/Movable air compressor
Engine Type	YUCHAI diesel engine
Mud Pump	BW250 mud pump

Product Overview

The CWD200T Crawler Mounted Rotary Water Well Drill Rig is designed for versatile drilling operations in various geological formations. It utilizes mud drilling for soft formations and air DTH hammer for rock drilling, with air pressure for slag discharge, offering significantly higher efficiency than traditional rotary drilling.

Key Features

Rotary head with two gears and stepless speed adjustment (60-115rpm) providing 5000-6500Nm torque
Regulatable pulling force for optimal deep hole drilling performance
Optional generator setup for welding and night work illumination
Main winch for high-efficiency drilling in mud rock and weathering formations
Hydraulic main drive system with hydraulic-controlled landing legs and drilling tower
Hydraulic auxiliary functions for guide extension, boom swing, boom lift, and guide dumping
Tools winch for auxiliary lifting and casing operations
Competitive pricing with low maintenance costs

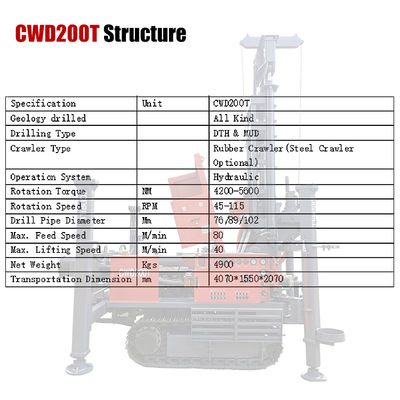

Technical Specifications

Specification	Unit	CWD200T
Geology drilled		All Kind
Drilling Type		DTH & MUD
Drill system and operation		Hydraulic
Hole Diameter	mm	Φ90--Φ350
Hole Depth	m	200
Rotation Torque	Nm	5500
Rotation Speed	rpm	60-115
Drill pipe diameter	mm	76/89/102
Drill pipe length	mm	3000
Max. Feed Speed	M/min	80
Max. Lifting Speed	M/min	40
Feed Stroke	mm	3600
Max. Pull back Capacity	T	12
Lifting force of Winch	T	1.2
Diesel Engine type		4Cylinder,water cooling
Diesel Engine Brand		YUNNEI
Rated Horse power	Kw	58
Pressure Required	Mpa	1.5-2.5
Air consumption	m³/min	15-30
Model		BW250
Displacement	L/Min	4
Net Weight	Kgs	5300
Transportation dimension	mm	407015502070
Work Dimension	mm	326023806190
Ground Clearance	mm	300

Package & Delivery

Our Comprehensive Services

Pre-sale Service

Our well-trained sales team and technical experts provide rational solutions tailored to your project requirements:

Model selection and equipment matching
Strong technical support
24-hour response to inquiries

Service During Sales

We maintain strict quality control from raw materials to finished products:

Custom design and manufacturing
Rigorous pre-delivery inspection
Regular production progress updates

After Sales Service

Comprehensive support throughout equipment lifespan:

Onsite debugging and training
Email, call, or onsite support
365×24 year-round service
